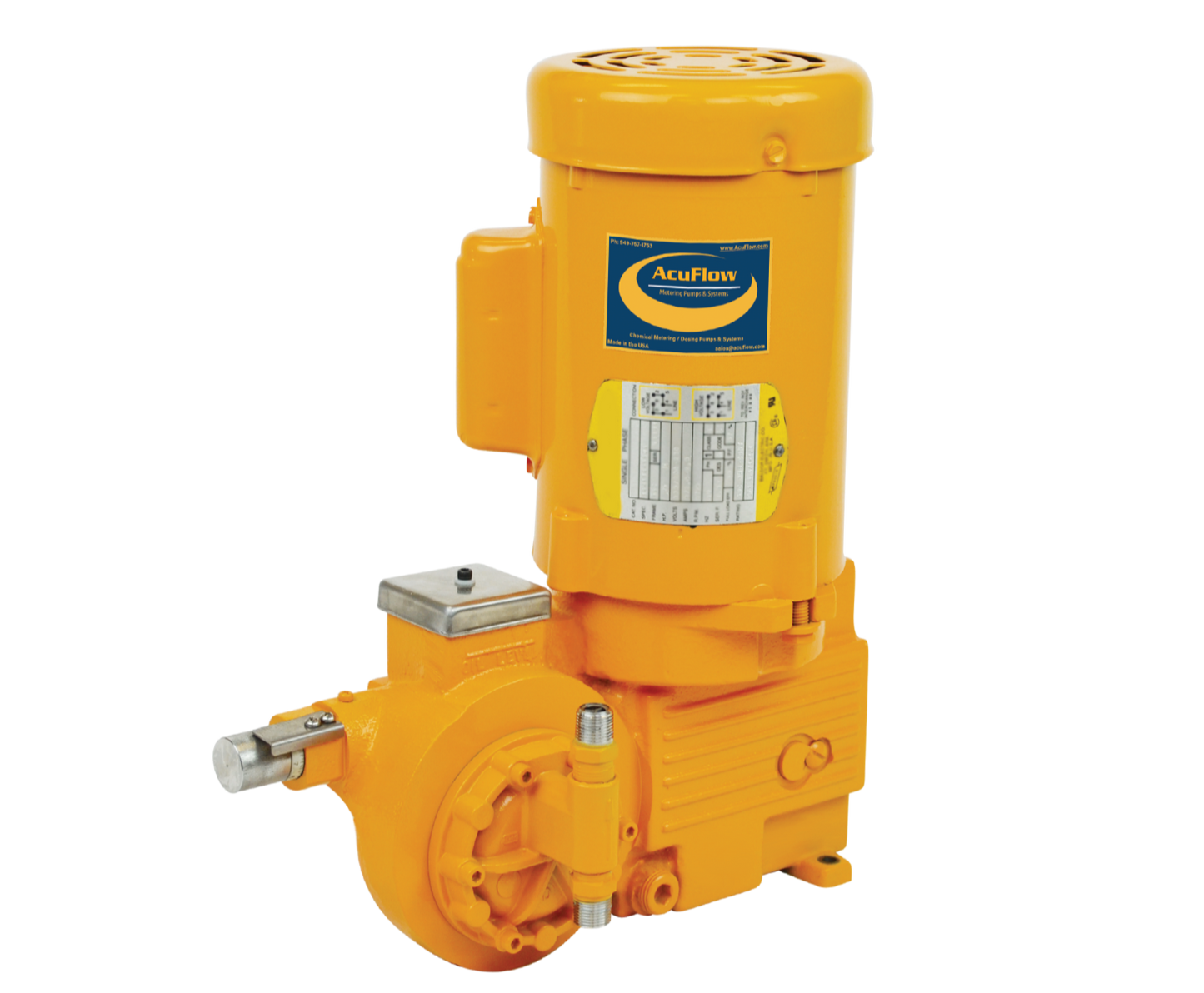

AcuFlow Hydraulically Balanced Diaphragm Pump 316SS Liquid End Material 9.05 GPH 200 PSI

AcuFlow Hydraulically Balanced Diaphragm Pump 316SS Liquid End Material 9.05 GPH 200 PSI

CJ4T 7512-04014 1PH

The AcuFlow Hydraulically Balanced Diaphragm Pump is designed with a 316SS liquid end material, providing efficient and reliable performance. With a flow rate of 9.05 gallons per hour and a maximum pressure of 200 PSI, this pump is perfect for a variety of industrial and commercial applications. Made in the USA.

Specifications

  • Capacity: 9.05 Gallons Per Hour
  • Pressure: 200.0 PSI
  • Liquid End Material: 316SS
  • Strokes Per Minute: 117.0 SPM
  • Single PTFE Disc Diaphragm
  • Simplex Manual Adjustment
  • Plunger Diameter: 3/4"
  • Valve Ball Size: 3/8"

Motor Information:

  • 60 Hz
  • 0.33 HP
  • 230/460 VAC
  • TEFC

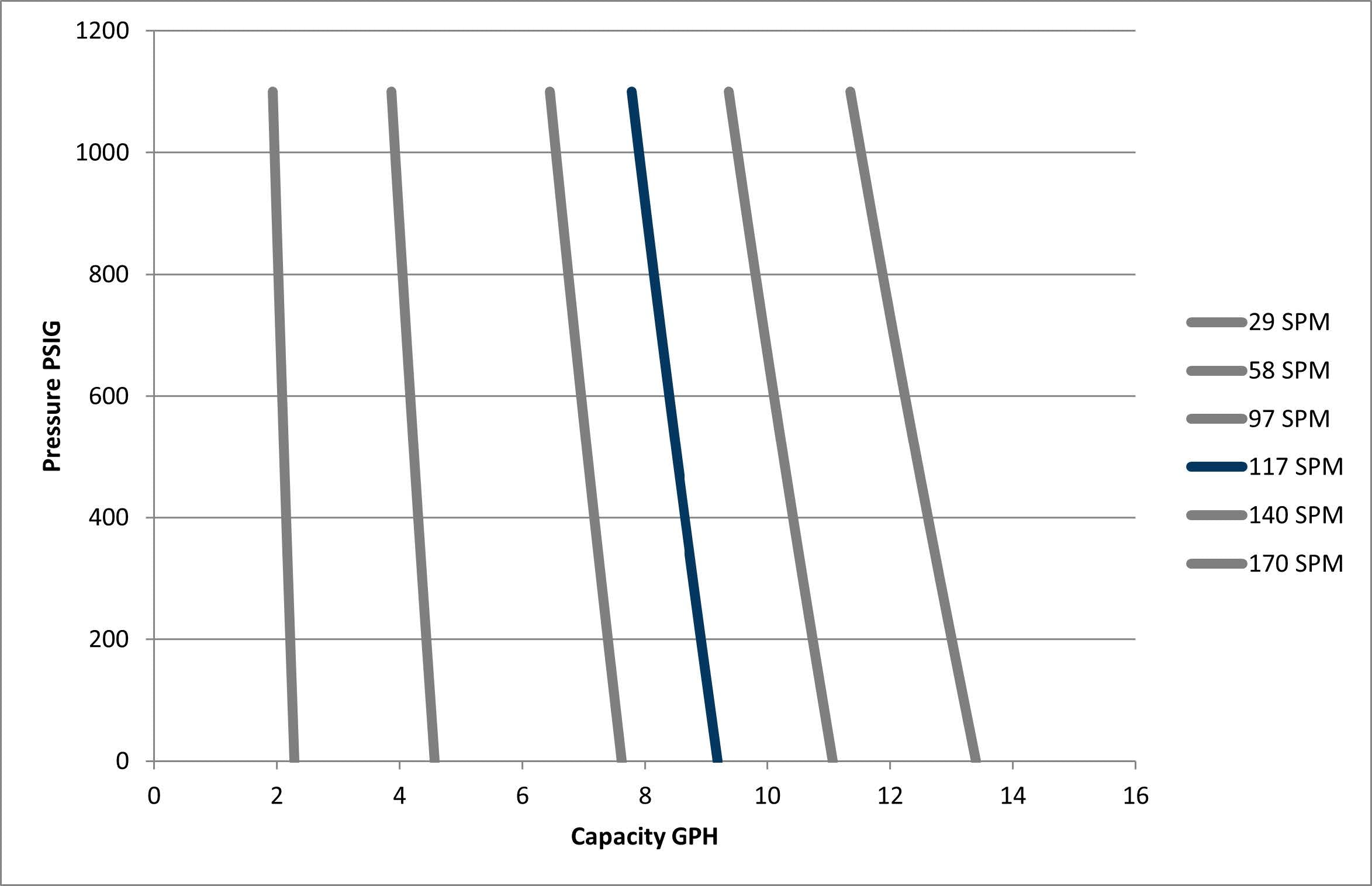

Performance

Downloads

Dimensions

Motor Phase
$4,434.75 USD
$5,321.70 USD $4,434.75 USD
Sale Sold out

Low stock: 1 left
