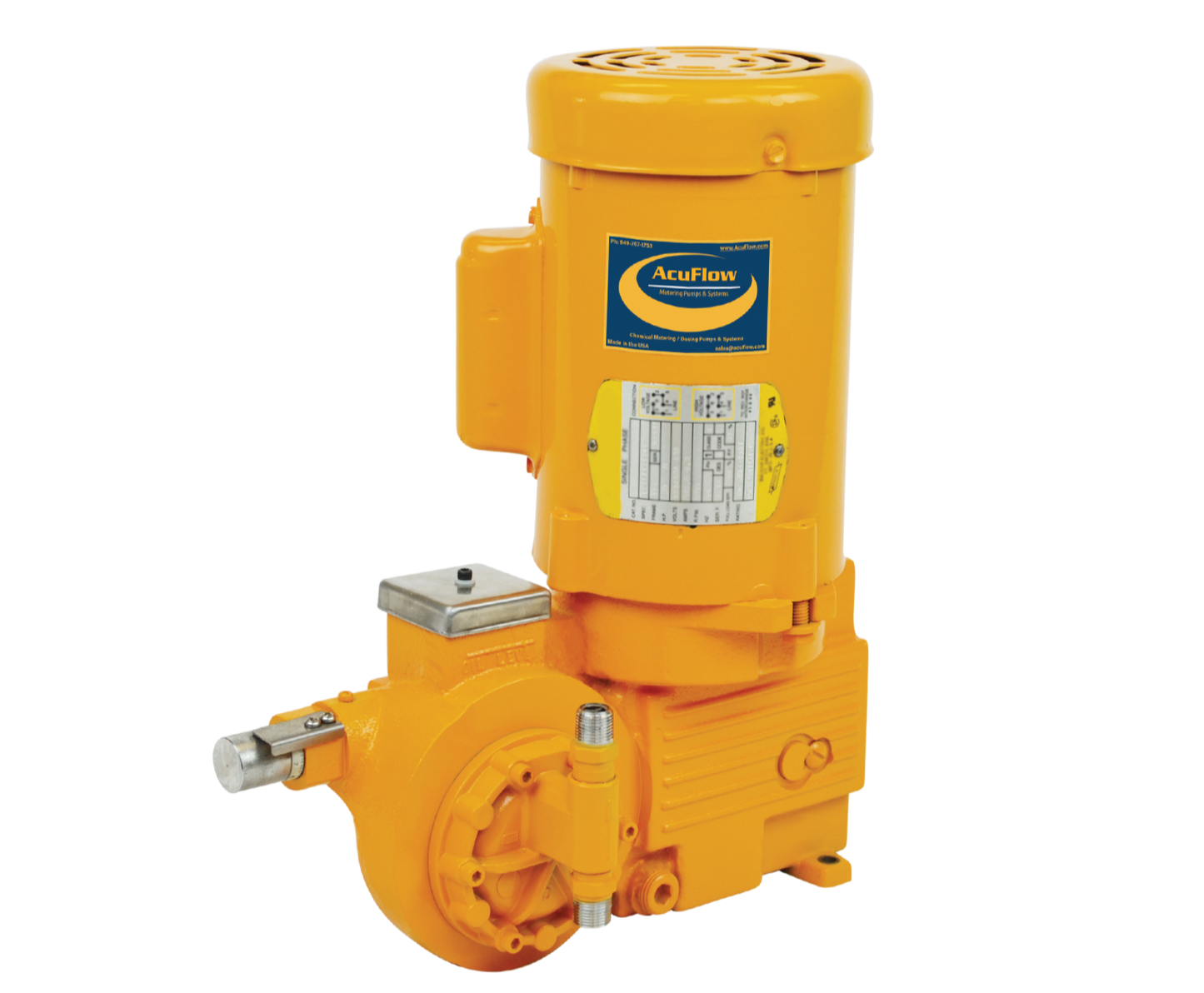

AcuFlow Hydraulically Balanced Diaphragm Pump 316SS Liquid End Material 4.2 GPH 200 PSI

AcuFlow Hydraulically Balanced Diaphragm Pump 316SS Liquid End Material 4.2 GPH 200 PSI

CJ4T 5697-04014 1PH

Experience optimal performance with the AcuFlow Hydraulically Balanced Diaphragm Pump. Made with 316SS liquid end material, this pump delivers a flow rate of 4.2 GPH and can handle pressures up to 200 PSI. Trust in its precision and durability for all your pumping needs. Made in the USA.

Specifications

  • Capacity: 4.2 Gallons Per Hour
  • Pressure: 200.0 PSI
  • Liquid End Material: 316SS
  • Strokes Per Minute: 97.0 SPM
  • Single PTFE Disc Diaphragm
  • Simplex Manual Adjustment
  • Plunger Diameter: 9/16"
  • Valve Ball Size: 3/8"

Motor Information:

  • 60 Hz
  • 0.33 HP
  • 230/460 VAC
  • TEFC

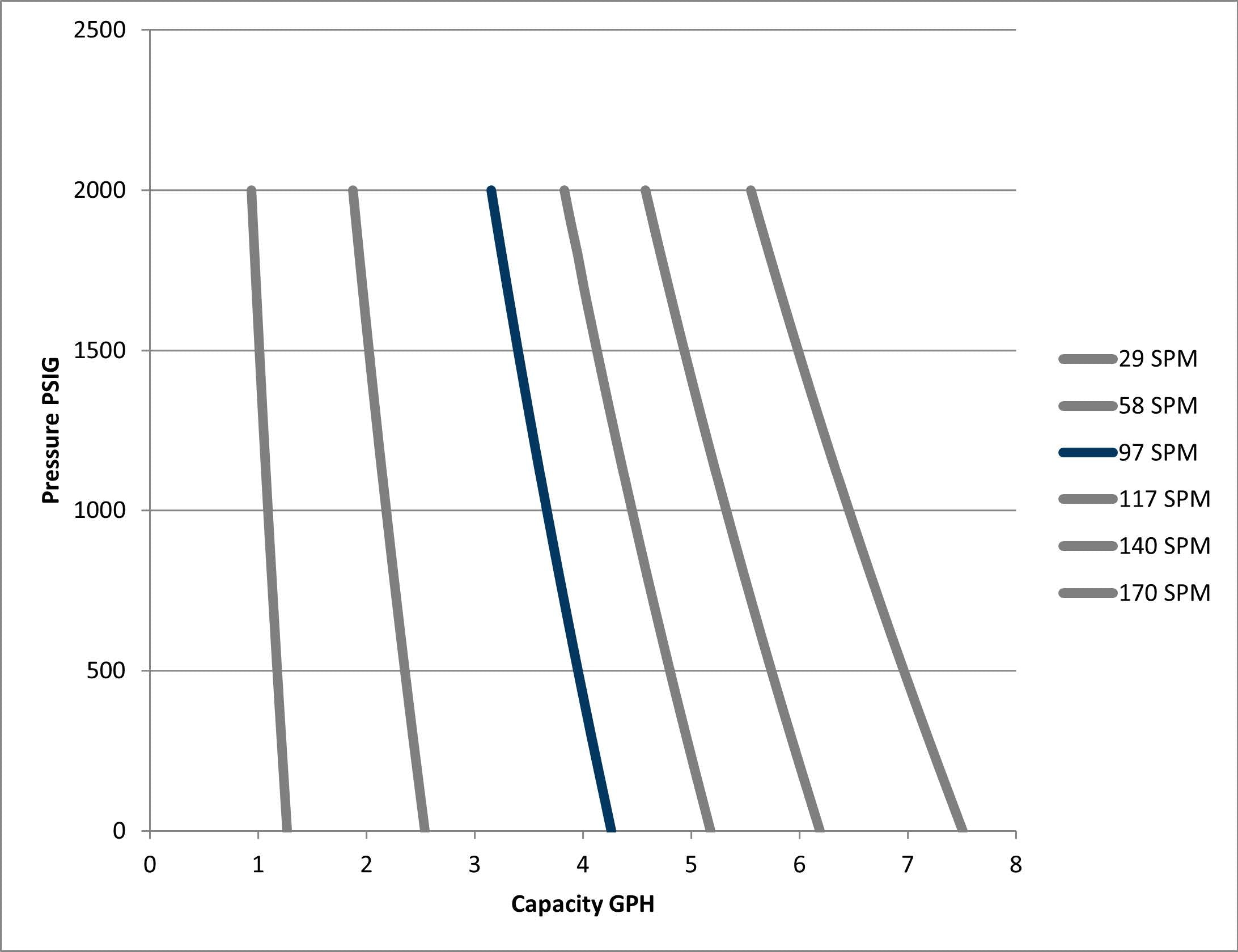

Performance

Downloads

Dimensions

Motor Phase
$4,422.75 USD
$5,307.30 USD $4,422.75 USD
Sale Sold out

Low stock: 1 left

Create an account to unlock exclusive discounts. Register here!

View full details
